Home / Automation of Valves / Actuated Butterfly ValvesAutomation of Valves Actuated Butterfly Valves
Size Range: 40mm to 1000mm
Normative Standard
Design Standard:
IS/ISO 13095 | API609 | BS5155
Testing Standard:
API 598 | IS/ISO 13095
Face to Face:
As per IS/ISO 13095 | API609 | BS5155
Pressure Rating
PN 10 | PN 16
End connection
Wafer type | Lug Type | Flanged End Type.
Materials
Body:
CI, SGI/DI, WCB, CF8, CF8M, Super Duplex, etc
Disc:
SGI/DI, WCB, CF8, CF8M, Duplex, Nylon Coated, Rubber Coated etc.
Seat:
EPDM, Nitrile, Viton, Hypalon, Silicon, PTFE etc.
Operation

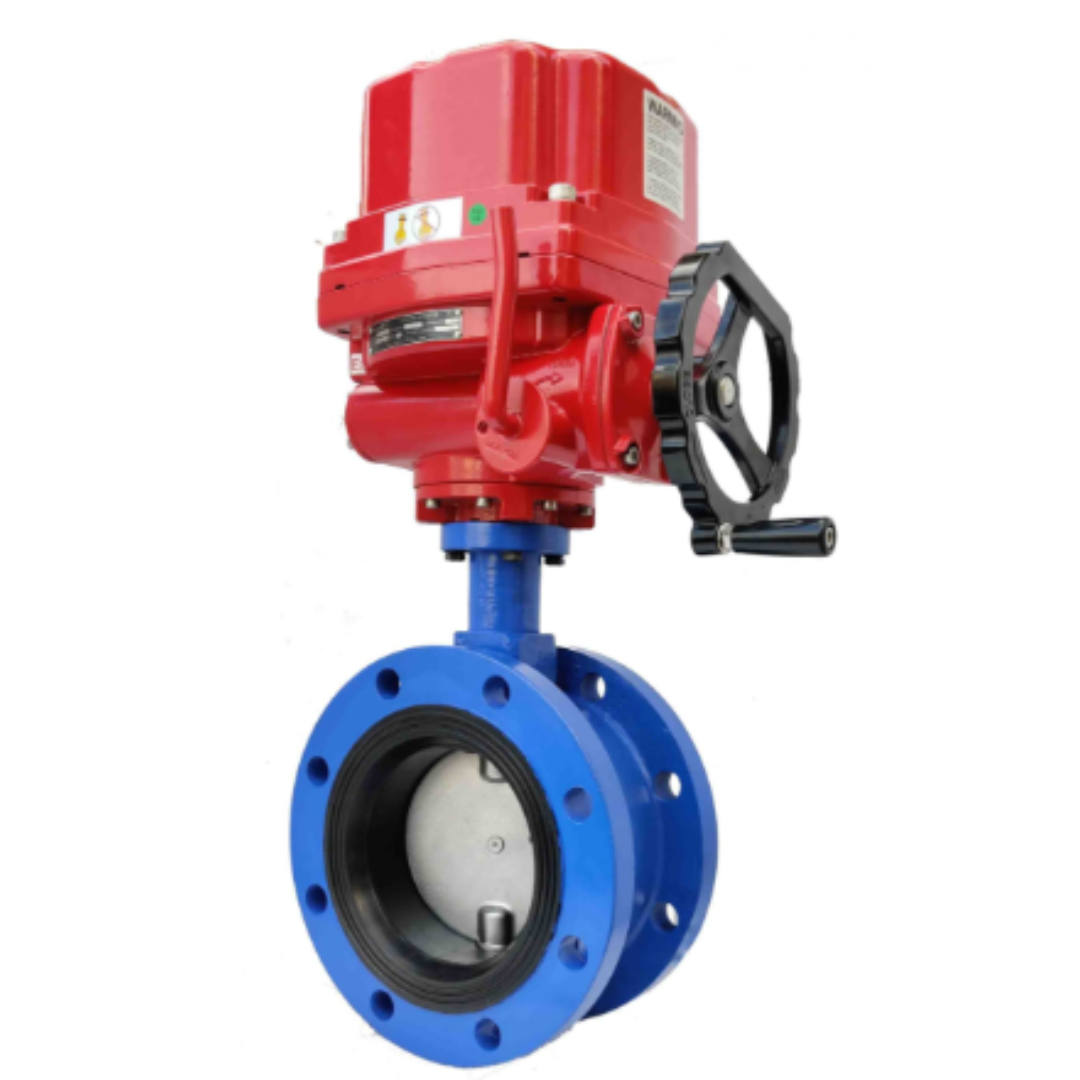

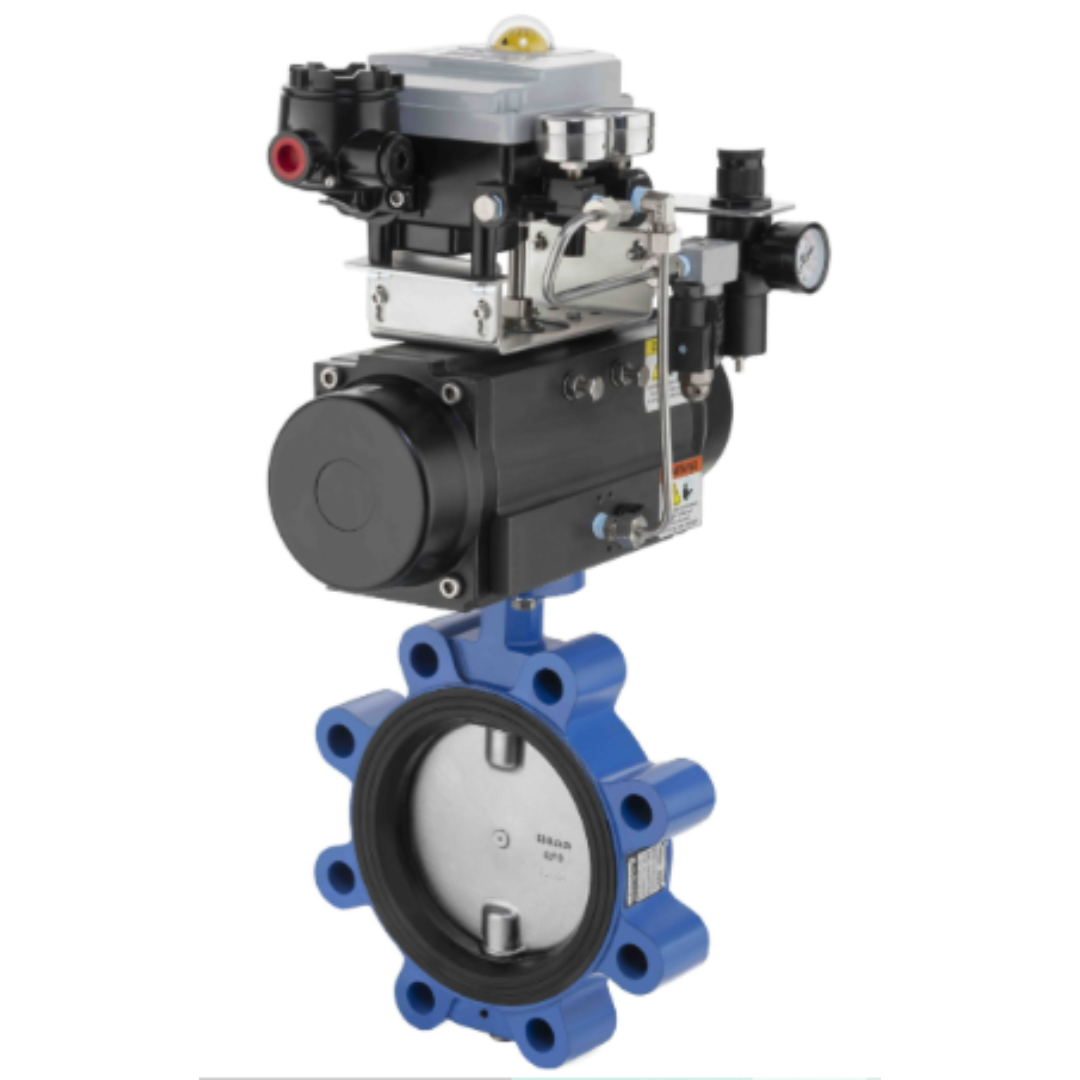

Pneumatically Actuated | Electrically Actuated (Motorized)
Acutation Varients
Single Phase / 3 Phase / DC Power Options Available, Local Control / Remote Control Options Available, Manual Over Ride for operation in case of Power failure, Valve positioning at intermediate positions, Feedback via Limit Switches & Torque Switches
Salient Features / Benefit
Low torque resulting in low wear & long life
Molded & Replaceable seat options available
Easy to assemble & dismantle in replaceable seat
Top flange as per ISO 5211 for easy actuation
Full Bore gives high Cv
WCB & SS is Investment Casted Body upto 200mm
