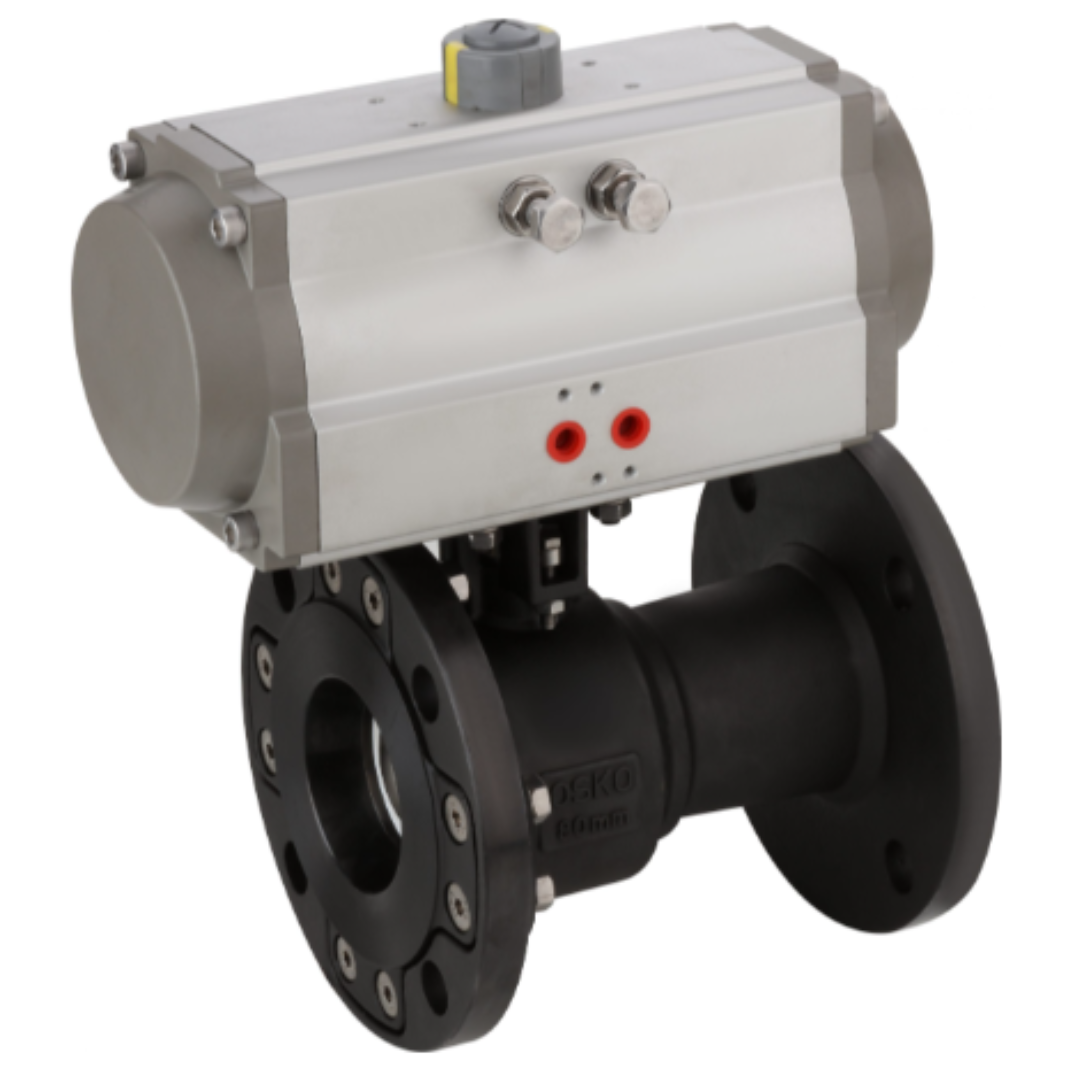

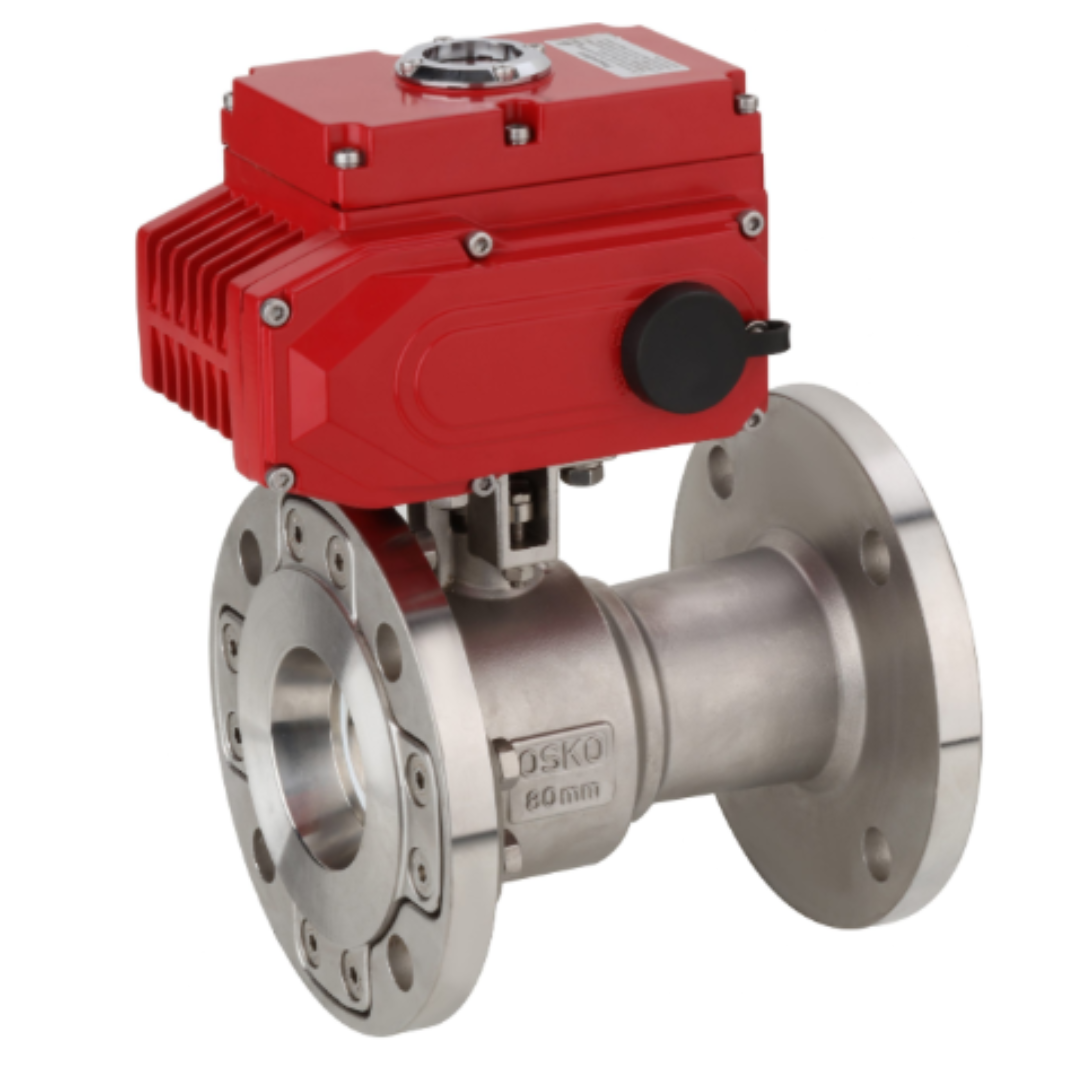

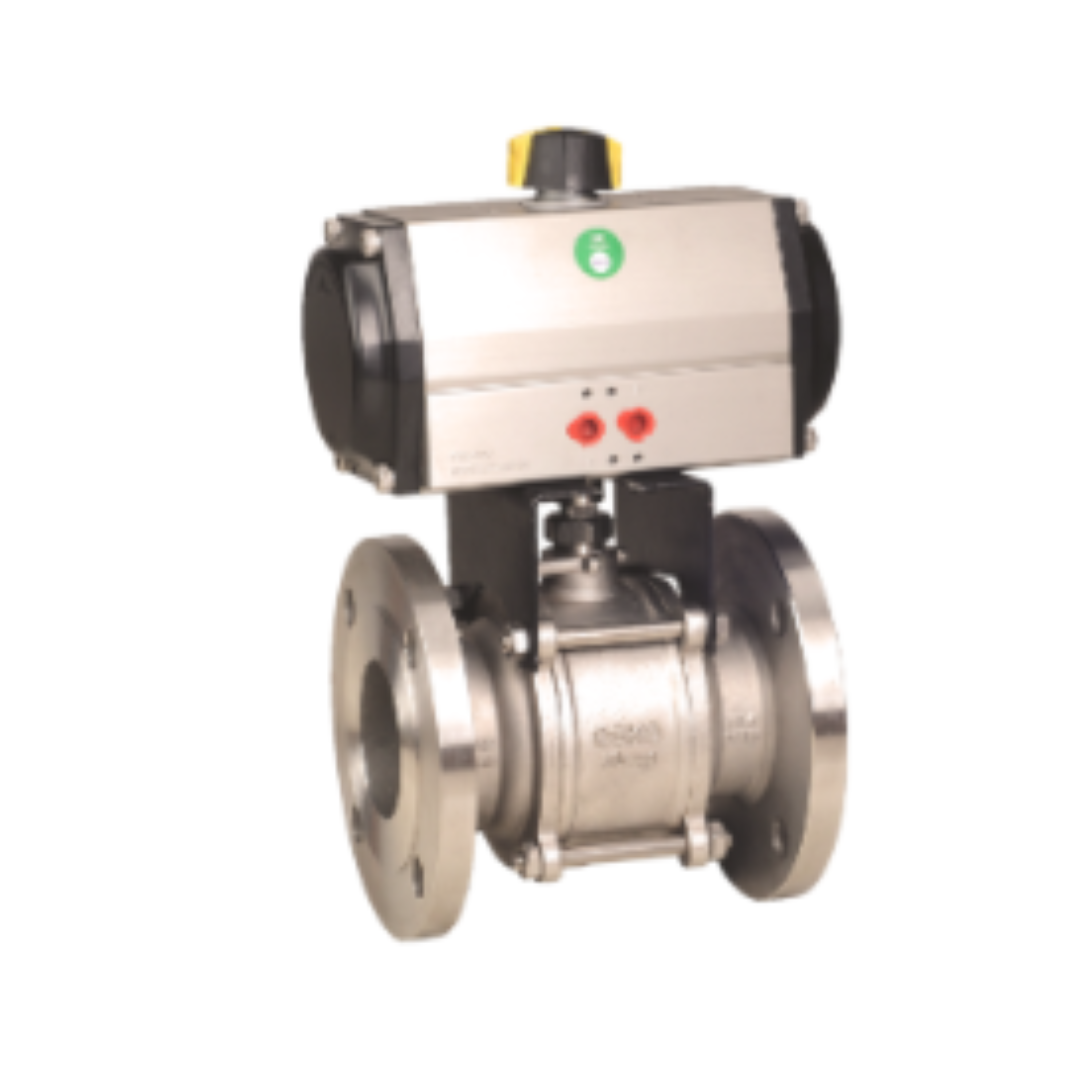

Actuated Ball Valves

Size Range: 15mm to 100mm

Normative Standard
Design Standard: IS/ISO 17292 | BS5351
Testing Standard: API 598 | IS/ISO 17292
Face to Face: As per ASME B16.10
Pressure Rating 150#
End connection Screwed End | Socket Weld End | Flanged End.
Materials
Body: WCB, CF8, CF8M, Super Duplex, etc
Seat: PTFE , RPTFE, CFT, GFT, PEEK etc
Operation Pneumatically Actuated, Electrically Actuated (Motorized)
Acutation Varients Single Phase / 3 Phase / DC Power Options Available, Local Control / Remote Control Options Available, Manual Over Ride for operation in case of Power failure, Valve positioning at intermediate positions, Feedback via Limit Switches & Torque Switches
Salient Features / Benefit
  • Full Bore
  • In Cast ISO Mounting Pad
  • Anti Blow out Stem
  • Push Type Gland
  • Floating Ball Type
  • Low Torque
