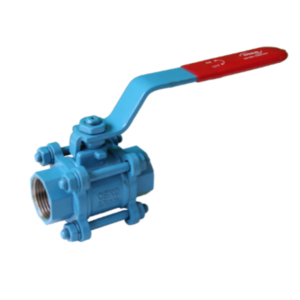

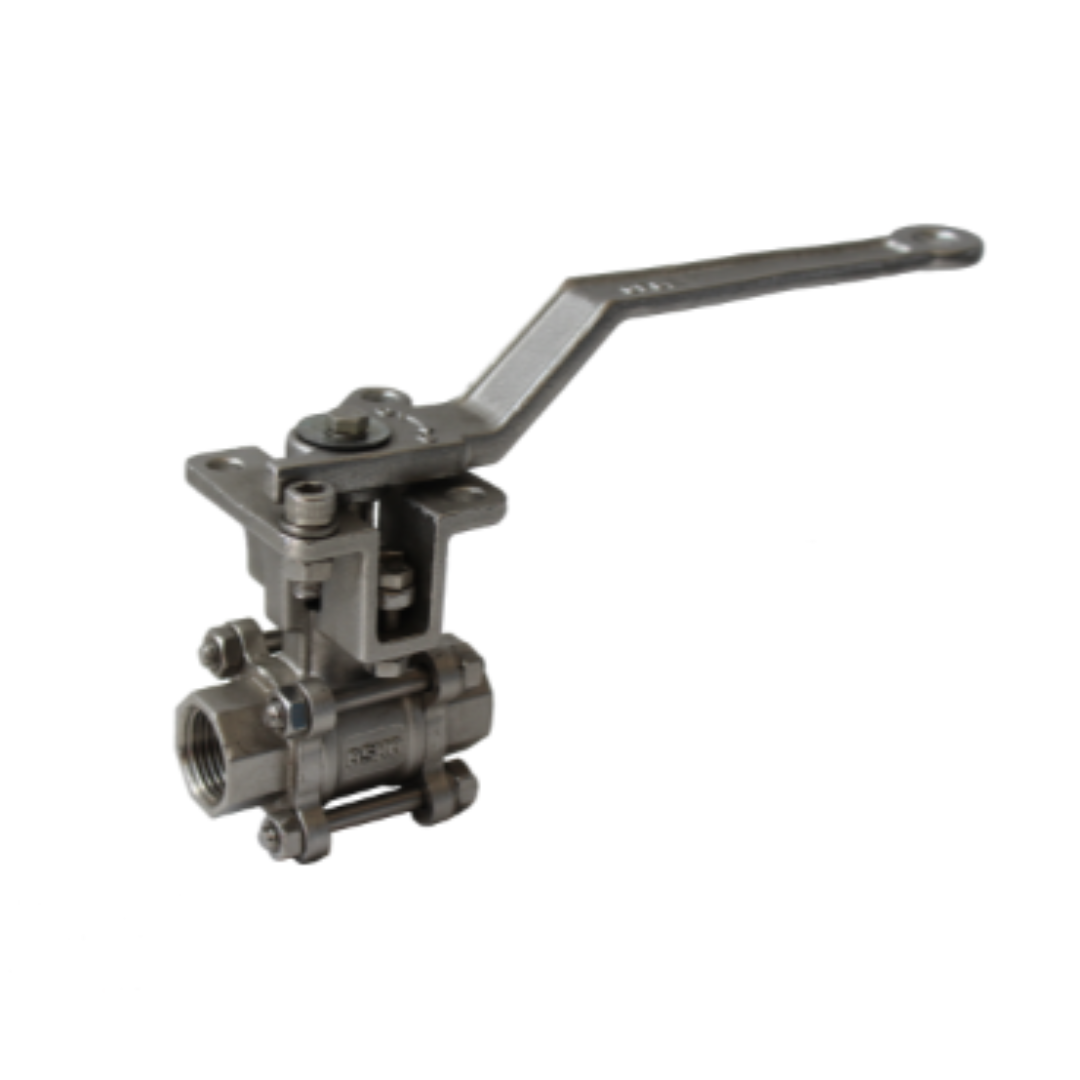

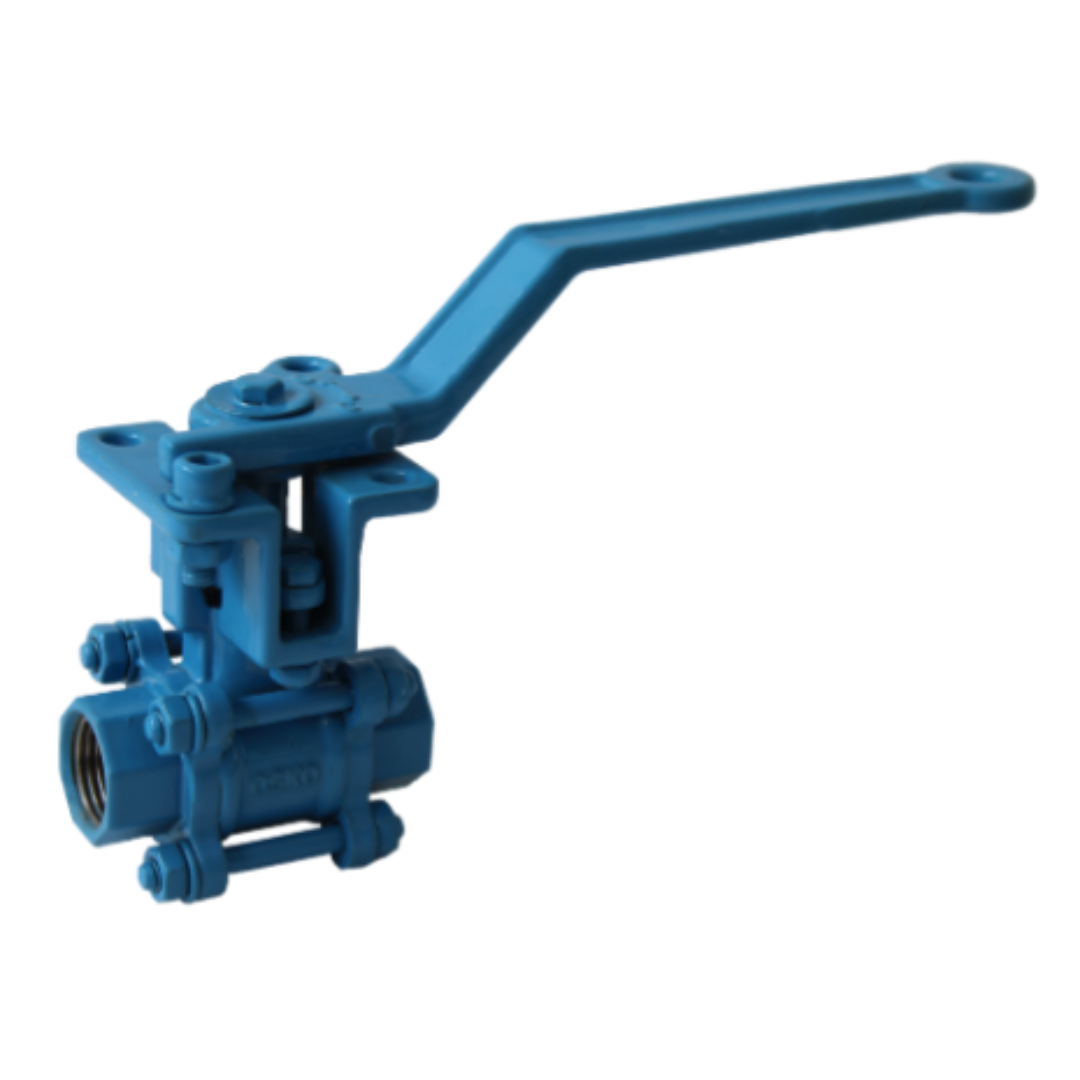

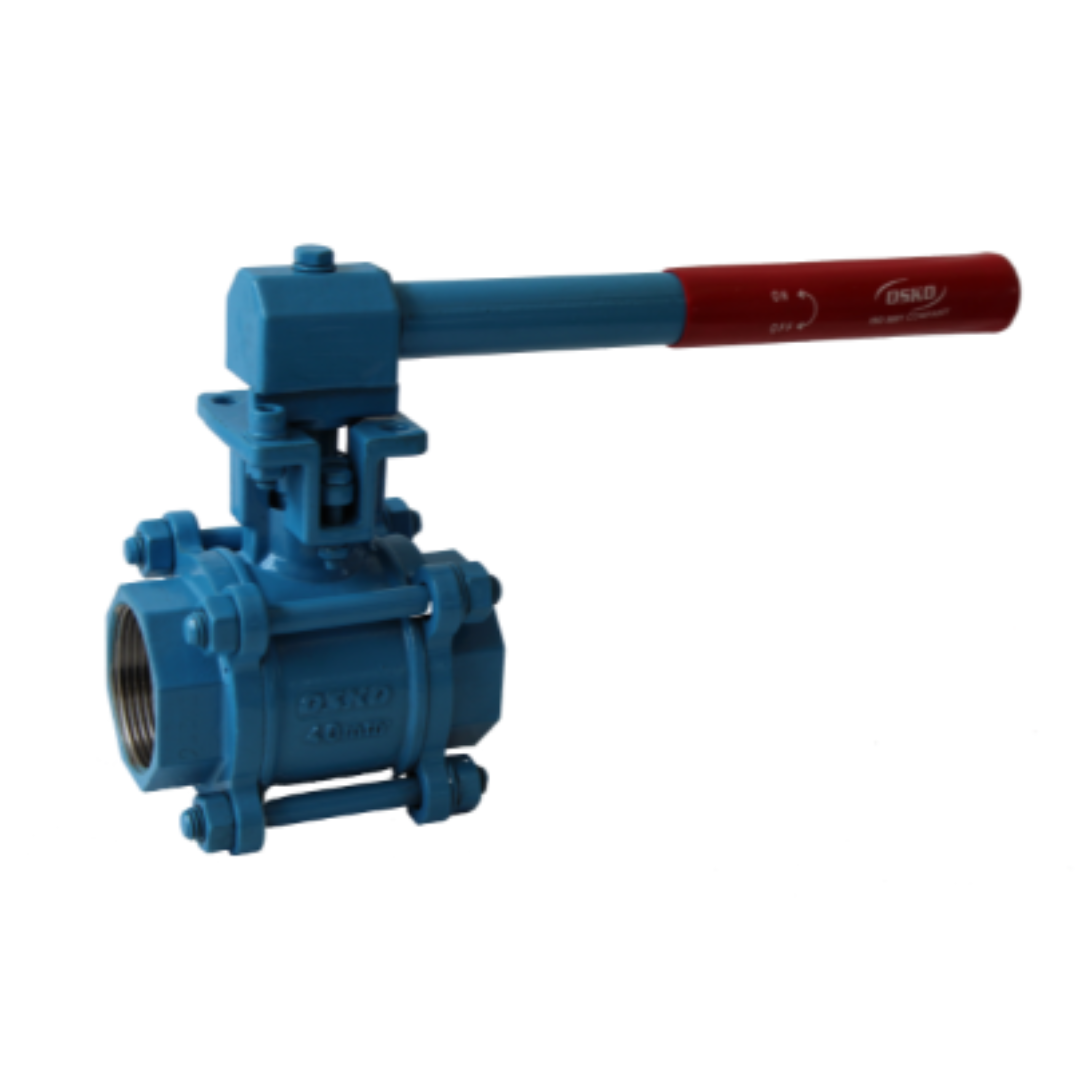

Ball Valves3-Piece IC Screwed End Ball Valves With ISO Pad
Size Range: 15mm to 100mm
| Normative Standard |
| Design Standard: |
IS/ISO 17292 | BS5351 |
| Testing Standard: |
API 598 | IS/ISO 17292 |
| Face to Face: |
Manufacturer Defined |
|
| Pressure Rating |
150# |
| End connection |
Screwed End | Socket Weld End |
| Materials |
| Body: |
WCB, CF8, CF8M, Super Duplex, etc |
| Seat: |
PTFE , RPTFE, CFT, GFT, PEEK etc |
|
| Operation |
Lever Operated, Gear Operated, Pneumatically Actuated, Electrically Actuated (Motorized) |
Salient Features / Benefit
- Anti Blow out Stem
- Interchangeability of Spares
- Low Torque & Long life
- Integral ISO Mounting Pad
- Push Type Gland
- Floating Ball
- Mirror finished Ball
