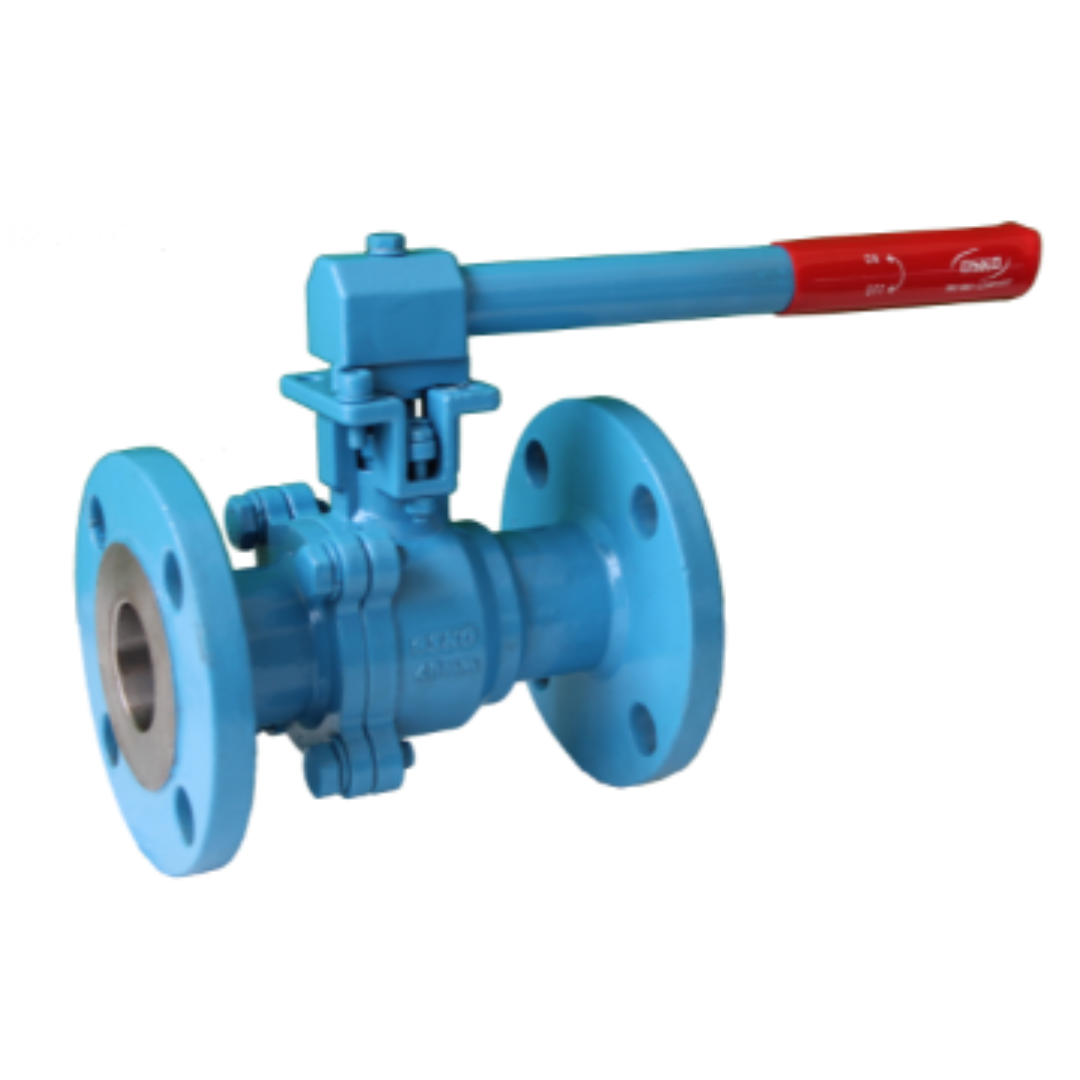

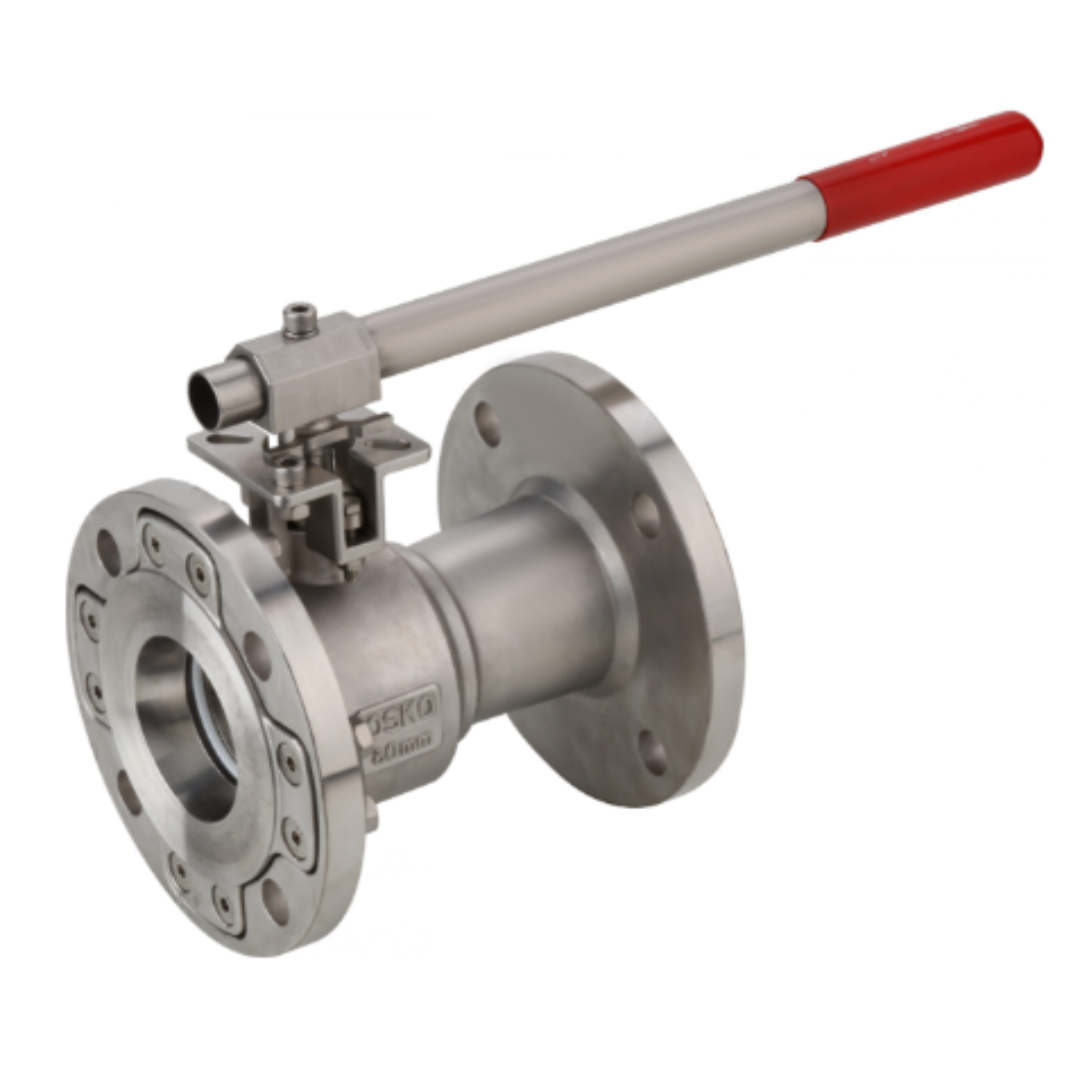

Ball Valves1-Piece IC Flanged End Ball Valves With ISO Mounting Pad
Size Range: 25mm to 100mm
| Normative Standard |
| Design Standard: |
IS/ISO 17292 | BS5351 |
| Testing Standard: |
API 598 | IS/ISO 17292 |
| Face to Face: |
ASME B16.10 |
|
| Ansi class/ Rating |
150# |
| End connection |
Flanged to suit ASME B16.5 #150 |
| Materials |
| Body: |
WCB | CF8 | CF8M | Super Duplex | etc |
| Seat: |
PTFE | RPTFE | CFT | GFT | PEEK etc |
|
| Operation |

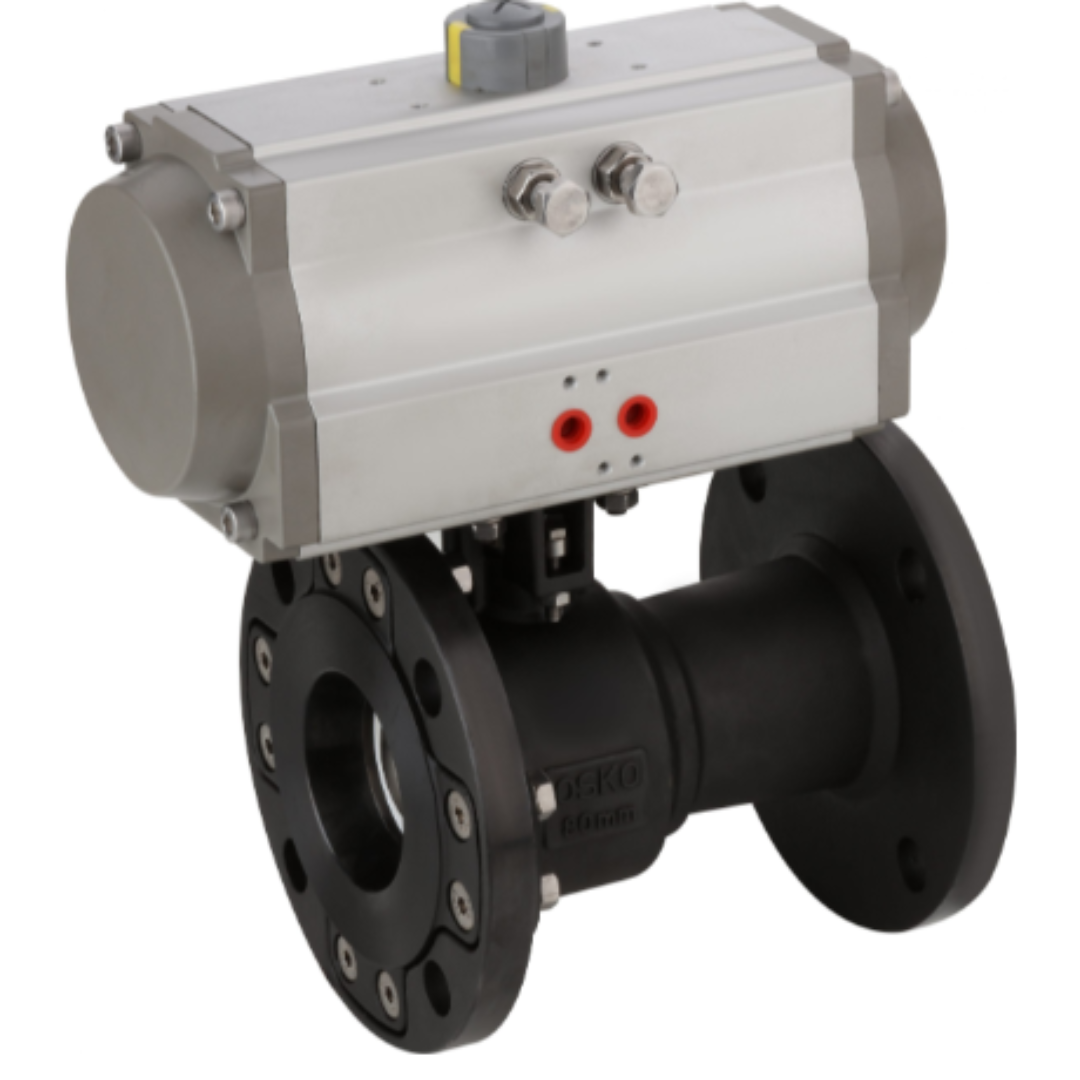

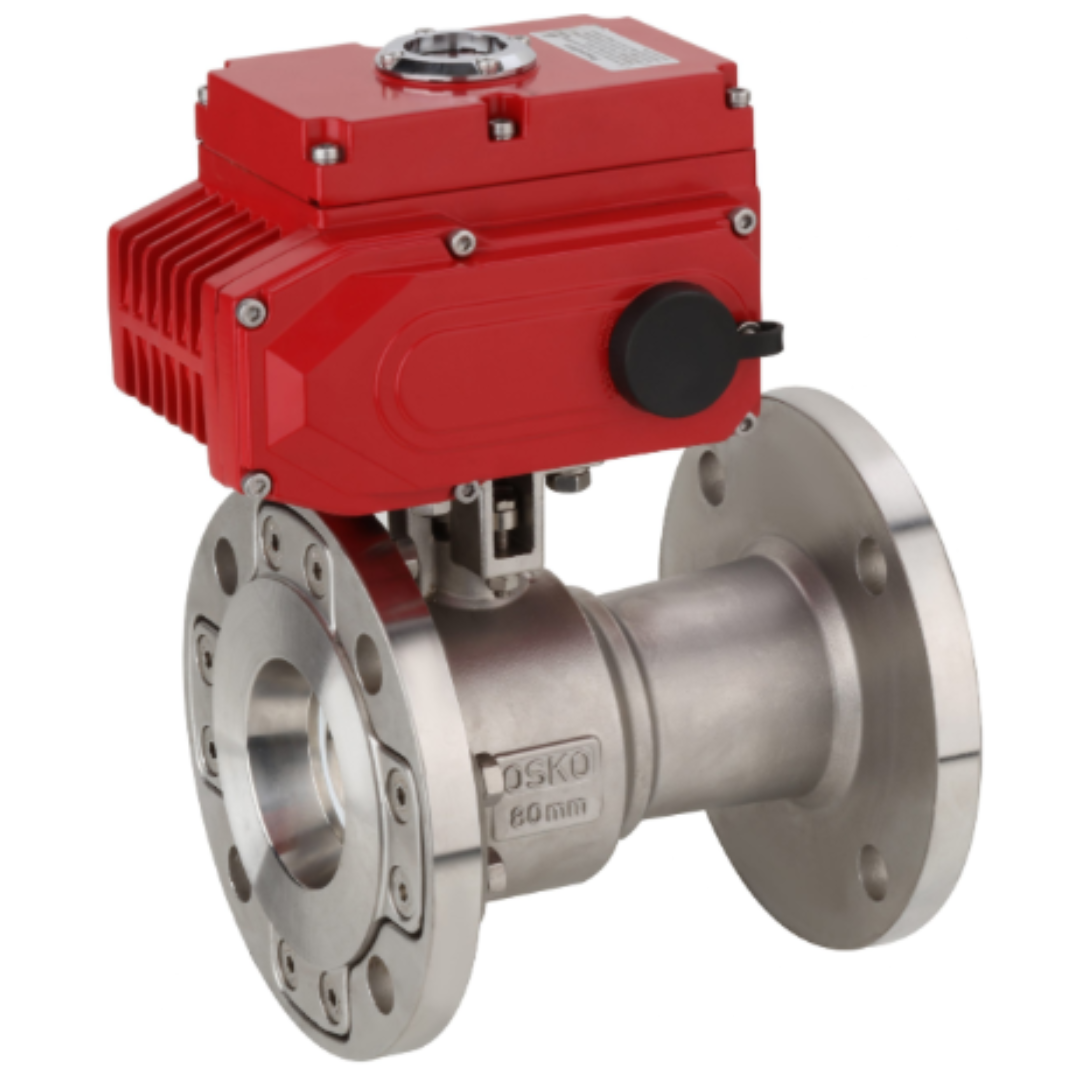

Lever Operated, Gear Operated, Pneumatically Actuated, Electrically Actuated (Motorized) |
Salient Features / Benefit
- Easy to maintenance because of Specially designed End Cap/Insert.
- Low Torque & Long Life
- Integral ISO Mounting Pad
- Push Type Gland
- Floating Ball Type
- Mirror Finished Ball
- Sturdy handle
- Anti Static & Fire safe valves available
- Locking Arrangement Available
