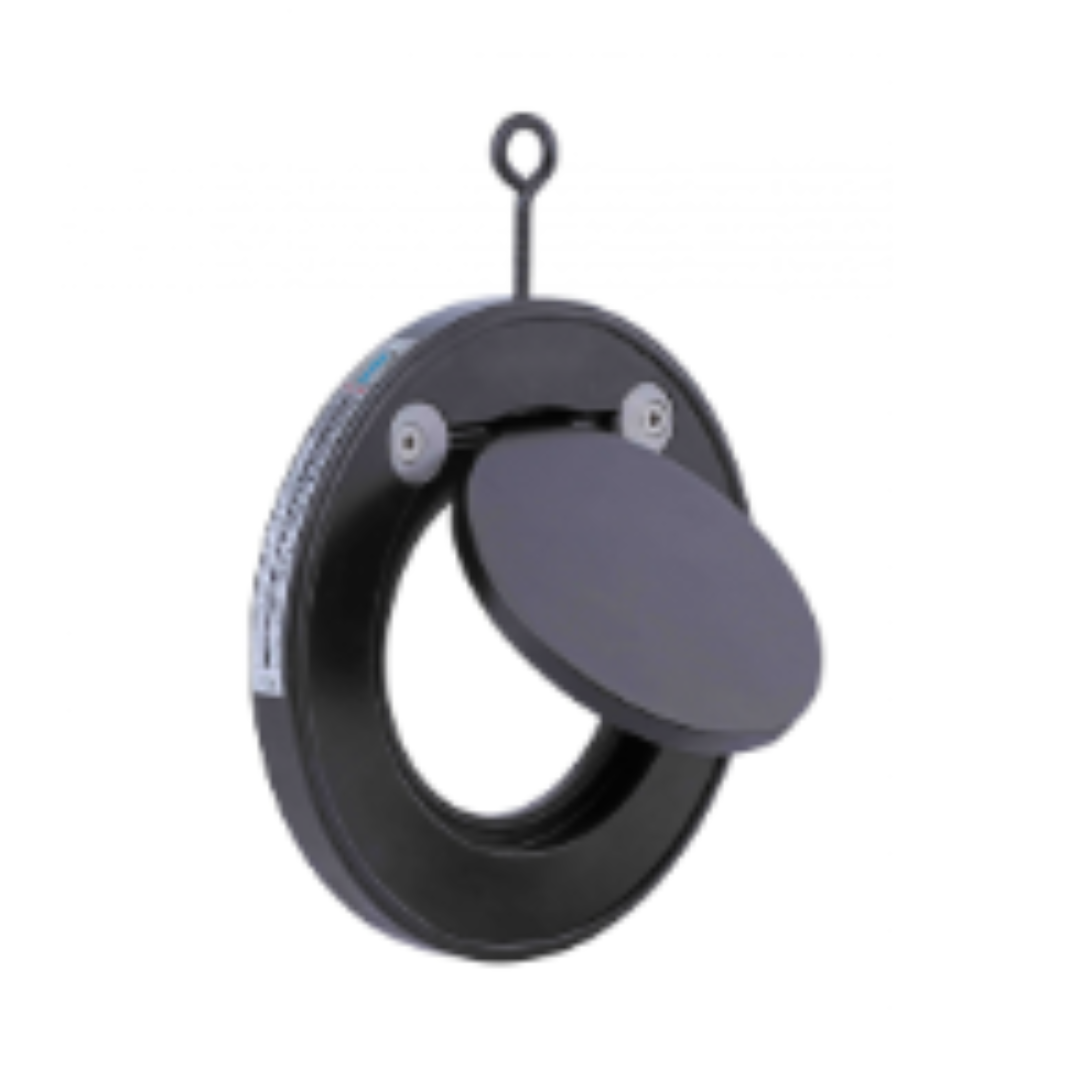

Wafer Type Swing Check Valves

Size Range: 40mm to 600mm

Normative Standard
Design Standard: API 6D
Testing Standard: API 598
Face to Face: API 6D
Pressure Rating PN 10 | PN 16
End connection Wafer to sandwich b/w ANSI 150 #, BS Table D & E | DIN PN 10 & 16
Materials
Body: CI, WCB, CF8, CF8M, etc
Seat: WCB, CF8, CF8M, etc
Operation Self Operated
Salient Features / Benefit
  • Low cost solution for checking reverse flow
  • Both side O-Rings gives leak proof fitting
  • Less space required for installation
  • Easy Install
Category:
