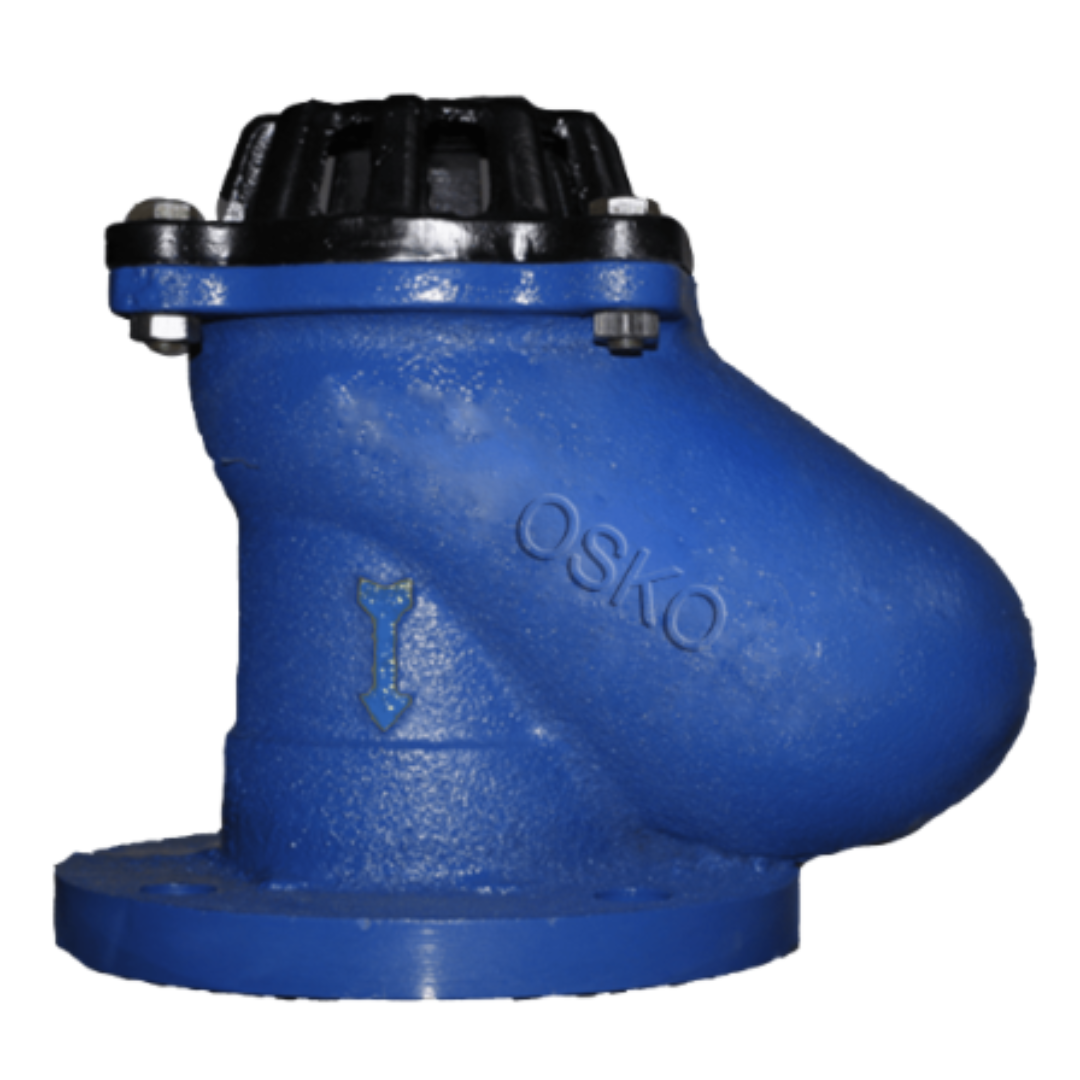

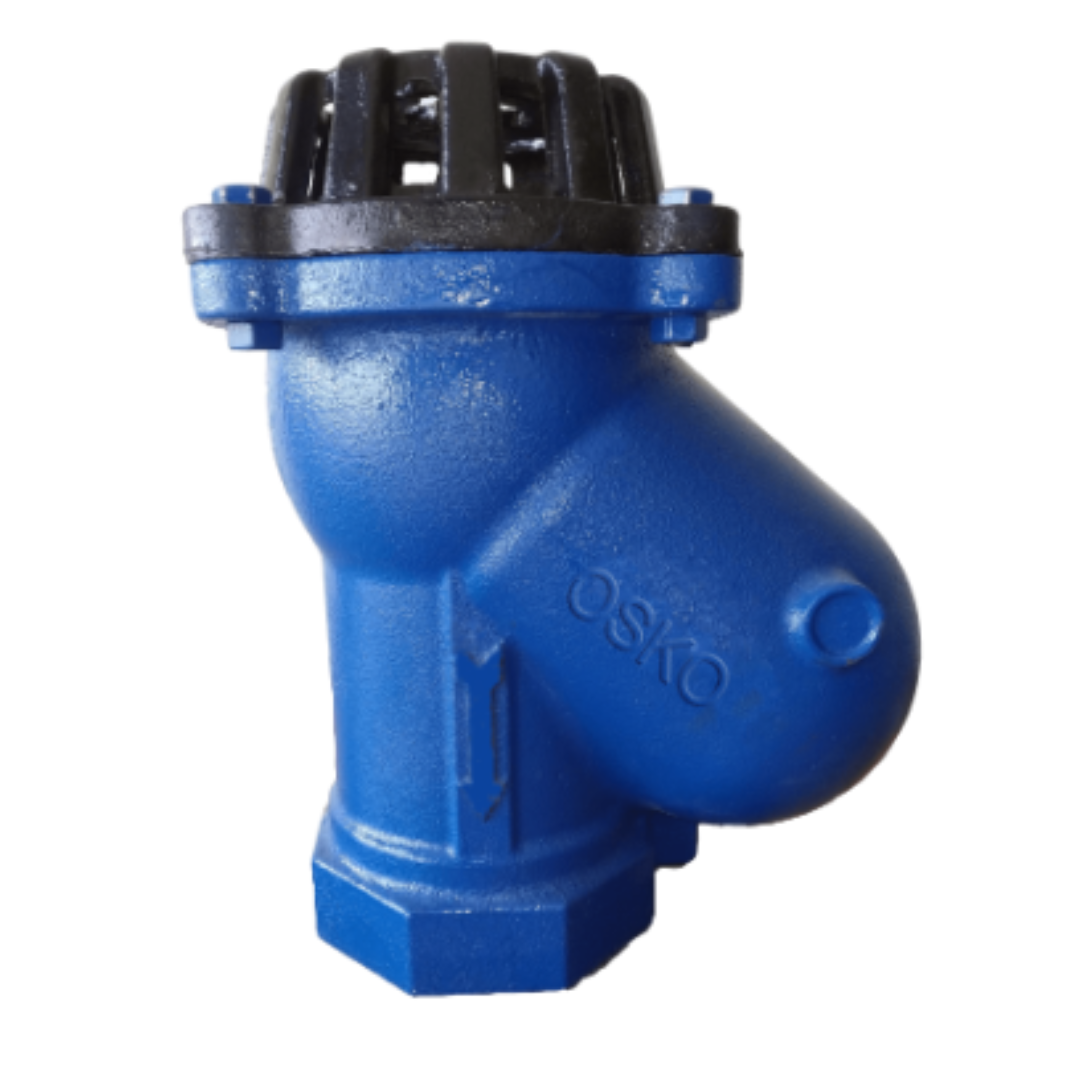

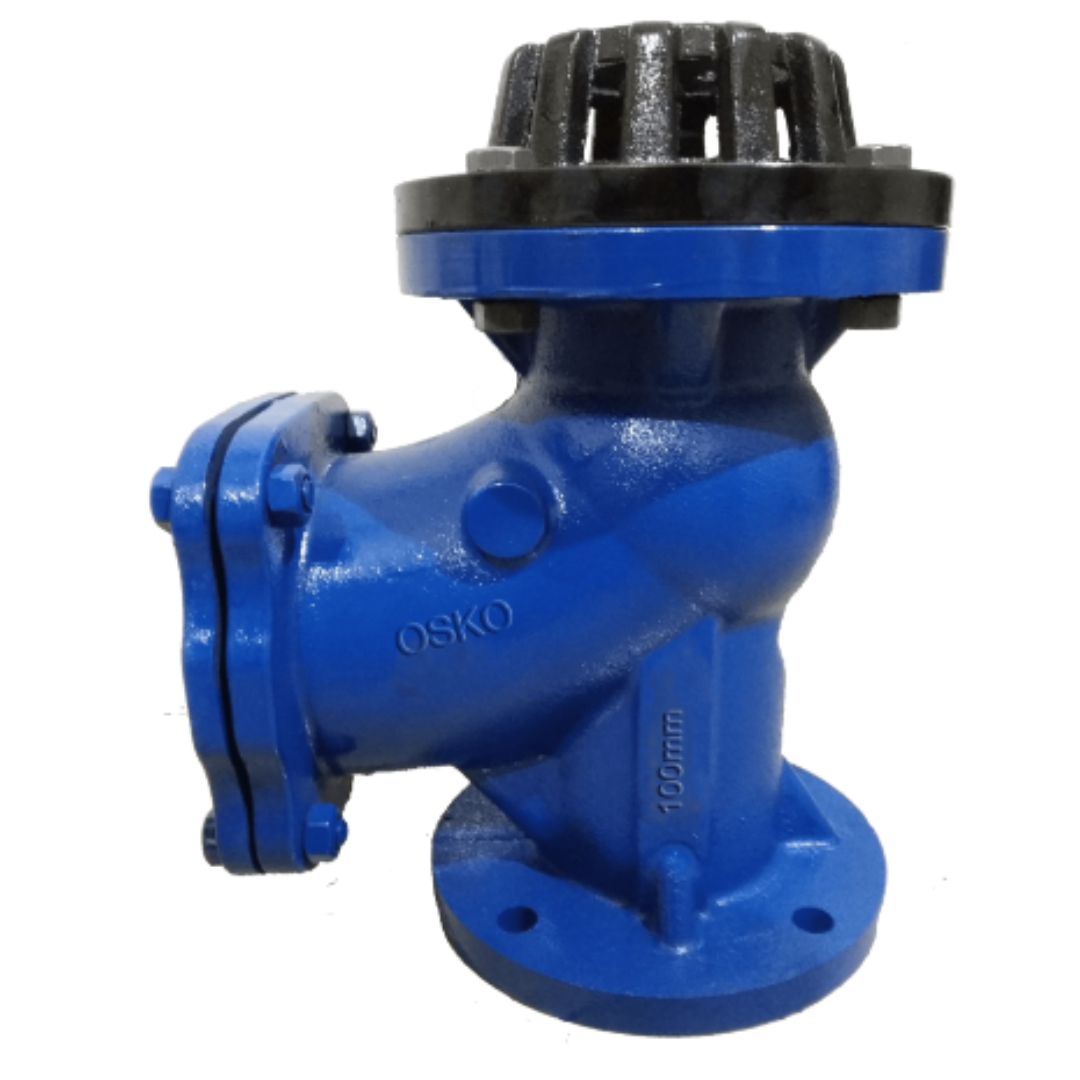

Foot ValvesBall Type Foot Valve
Size Range: 50mm to 200mm
| Normative Standard |
| Design Standard: |
Manufacturer Defined |
| Testing Standard: |
API 598 |
| Face to Face: |
Manufacturer Defined |
|
| Pressure Rating |
PN6 | PN10 | PN16 |
| End Connection |
Threaded End | Flanged End |
| Materials |
| Body: |
Cast Iron |
| Ball: |
Nitrile Rubber Coated |
|
| Operation |
Ball motion in Specified Path |
Salient Features / Benefit
- No clogging of valve as ball is the only moving part
- Can be used in highly dense & Viscous fluids
- High flow rate as ball moves out completely from the passage and offers no hindrance
- Low head loss because of light weight free floating ball
- Rubber ball gives perfect sealing making it leak proof
- Any foreign material deposited on ball or body gets cleaned because of the rolling ball
