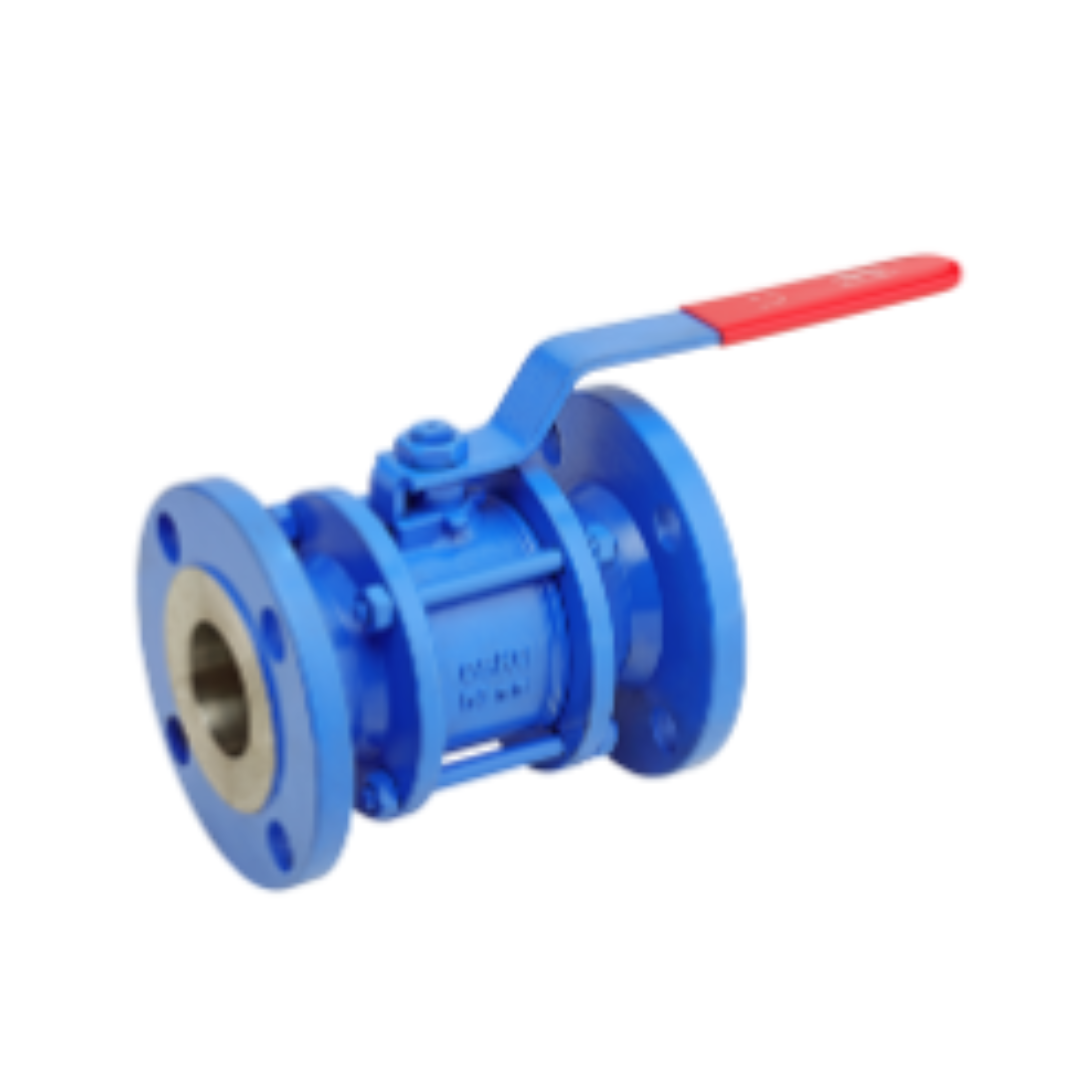

Ball Valves3-Piece WCB Flanged End Ball Valves
Size Range: 15mm to 100mm
| Normative Standard |
| Design Standard: |
IS/ISO 17292 | BS 5351 |
| Testing Standard: |
as per API 598 | IS/ISO 17292 |
| Face to Face: |
ASME B16.10 |
|
| Pressure Rating |
#150 |
| End Connection |
Flanged to suit ASME B 16.5 #150 |
| Materials |
| Body: |
WCB |
| Seat: |
PTFE | CFT | GFT | PEEK |
|
| Operation |
Lever Operated, Gear Operated, Pneumatic Actuated, Electrically Actuated (Motorized) |
Salient Features / Benefit
- Low Torque & Long Life
- Floating Ball Type
- Mirror Finished Ball
- Anti Static & Fire safe valves available
