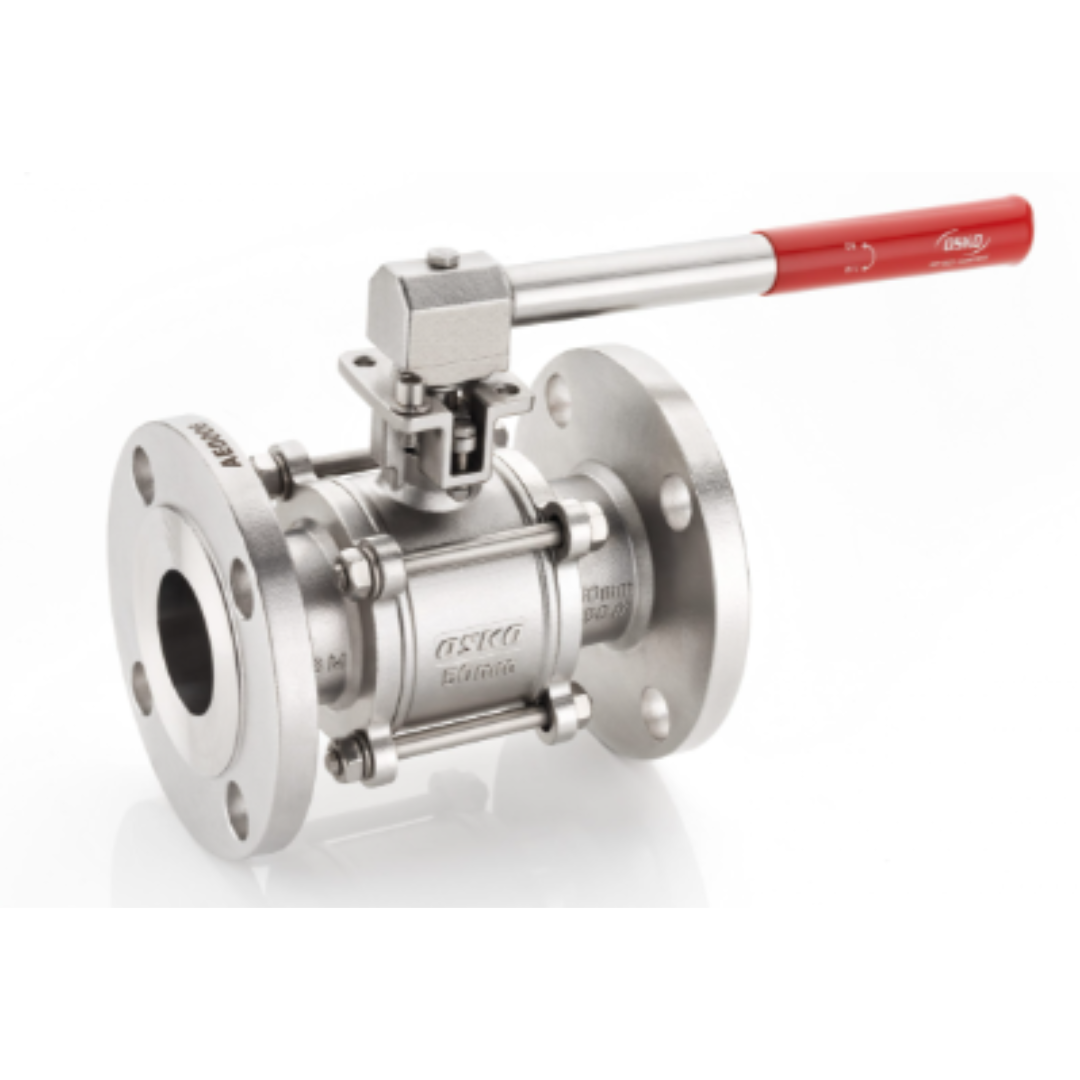

Ball Valves3-Piece IC Flanged End Ball Valves
Size Range: 15mm to 100mm
| Normative Standard |
| Design Standard: |
IS/ISO 17292 | BS5351 |
| Testing Standard: |
API 598 | IS/ISO 17292 |
| Face to Face: |
ASME B16.10 |
|
| Pressure Rating |
150# |
| End Connection |
Flanged to suit ASME B16.5 #150 |
| Materials |
| Body: |
WCB, CF8, CF8M, Super Duplex, etc |
| Seat: |
PTFE , RPTFE, CFT, GFT, PEEK etc |
|
| Operation |
Lever Operated. |
Salient Features / Benefit
- Low Torque & Long Life
- Floating Ball Type
- Mirror Finished Ball
- Anti Static & Fire safe valves available
